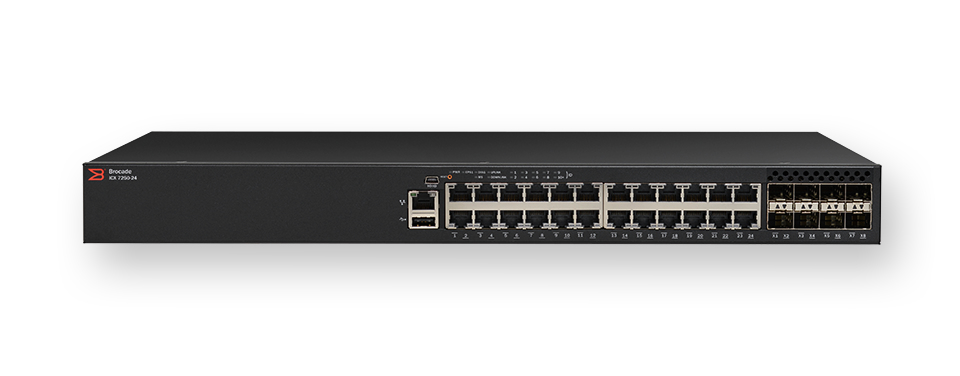

Brocade ICX 7250 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Brocade ICX 7250 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black Brocade ICX 7250 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black Brocade ICX 7250 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Brocade ICX 7250 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

RJ-45 x 24, SFP+ x 8, 208 Gbps, PoE+
Manufacturer part number ICX7250-24P-2X10G
Vendor
Future-proof switching at entry-level price
Meet tomorrow’s needs today—even if you don’t know what those needs will be. Use the same standard ports for uplink or stacking, phase in SDN, and expand one switch stack to multiple locations. You can even add more advanced ICX family features with Campus Fabric. And only Brocade lets you manage switches across network layers from a single touchpoint.

Enterprise-level capabilities
- Full Layer 3 support on delivery; Advanced Layer 3 capabilities through the Campus Fabric
- Manageable via open standards
- Market-leading stackability with up to 12 switches per stack, and up to 80 Gbps of stacking bandwidth
- Manageable via standard CLI and BNA enterprise management tool
- Future proof with OpenFlow support for network programmability

Data transmission

Number of VLANs
4096
MAC address table
16384 entries
Switching capacity
208 Gbit/s
Throughput
154 Mpps
Jumbo frames support
Y
Jumbo frames
9216

Design

Form factor
1U
Color of product
Black
Wall mountable
Y
Rack mounting
Y

Management features

Quality of Service (QoS) support
Y
Multicast support
Y
Web-based management
Y
Traffic classification
Y
Traffic shaping
Y
ARP inspection
Y
Reset button
Y
Switch type
Managed network switch
Switch layer
L3

Networking

Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Full duplex
Y
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
DHCP client
Y
DHCP server
Y
IP routing
Y
IGMP snooping
Y
Auto MDI/MDI-X
Y
Spanning tree protocol
Y
VLAN support
Y
Private VLAN
Y

Operational conditions

Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 118110.2" (0 - 3000 m)
Non-operating altitude
0 - 472440.9" (0 - 12000 m)

Optical fiber

Fiber optic connector
SFP,SFP+

Packaging content

Manual
Y

Performance

Stackable
Y
Noise level
44.7 dB
Mean time between failures (MTBF)
429209 h

Ports & interfaces

Installed SFP+ modules quantity
2
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Installed SFP modules quantity
6

Power

Power supply included
Y
AC input voltage
100-240
AC input frequency
50/60
Power consumption (max)
525 W

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE)
Y
Power over Ethernet plus (PoE+) ports quantity
24

Security

MAC address filtering
Y
Static port security
Y
Access Control List (ACL)
Y
SSH/SSL support
Y
BPDU filtering/protection
Y

Weight & dimensions

Width
17.3" (440 mm)
Depth
11" (280 mm)
Height
1.72" (43.7 mm)
Weight
10.4 lbs (4.73 kg)
