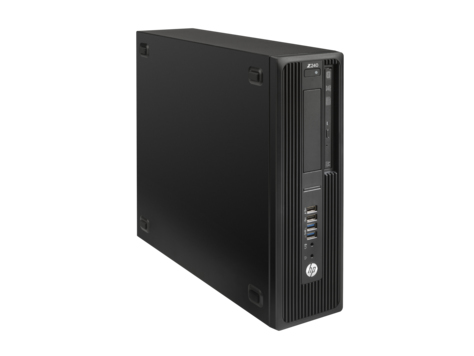

HP Z240 Small Form Factor Workstation (ENERGY STAR)
HP Z240 Small Form Factor Workstation (ENERGY STAR) HP Z240 Small Form Factor Workstation (ENERGY STAR) HP Z240 Small Form Factor Workstation (ENERGY STAR) HP Z240 Small Form Factor Workstation (ENERGY STAR)

HP Z240 Small Form Factor Workstation (ENERGY STAR)

HP Z240 Small Form Factor Workstation (ENERGY STAR)
Manufacturer part number L9K23UT#ABA
Vendor
Loading price
HP’s entry level workstations just got better. The HP Z240 SFF packs the performance, features, and reliability of a workstation into the price point of a desktop PC.
Choose the OS for you
Support your unique user needs with a choice of Windows 10 Pro[1] or Linux® operating systems.
Better Package. Bigger Punch
Get more performance, expandability and flexibility than our previous generations.
Powerful performance
Achieve the performance you need with your choice of next generation Intel® Xeon® processors or Intel® Core™ processors.[2]
Ultra-fast storage
Handle large files, reduce work time and increase performance with the optional HP Z Turbo Drive.[3]
Work smarter
Up to 64 GB DDR4 ECC memory helps provide no compromise capacity, performance, and reliability.
Geared up graphics
Ignite productivity with NVIDIA® professional graphics cards in 2D or 3D.[3]
Clean and cool
Help internal components stay clean and cool with a removable and cleanable dust filter.
Connect more
Charge your device using the fast charging front USB port.
Plug into efficiency
Choose the power supply that fits your needs with up to 92% efficiency.[3]

Design

Color of product
Black
Chassis type
SFF
Water cooling system
N

Graphics

On-board graphics adapter model
Intel® HD Graphics 530
On-board graphics adapter family
Intel® HD Graphics
Graphics adapter Open GL support
Y
On-board graphics adapter base frequency
350 MHz
On-board graphics adapter dynamic frequency (max)
1150 MHz
Maximum on-board graphics adapter memory
1.74 GB
Number of displays supported (on-board graphics)
3
On-board graphics adapter DirectX version
12.0
On-board graphics adapter OpenGL version
4.4
On-board graphics adapter ID
1912
Discrete graphics adapter model
Not available
On-board graphics adapter
Y

Memory

Internal memory
8 GB
Internal memory type
DDR4-SDRAM
Maximum internal memory
64 GB
Memory slots
4x DIMM
Memory clock speed
2133 MHz

Networking

Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000 Mbit/s

Optical drive

Optical drive type
DVD Super Multi
Optical drives quantity
1

Packaging content

Display included
N

Performance

Product type
Workstation
Motherboard chipset
Intel C236

Ports & interfaces

PS/2 ports quantity
2
Serial ports quantity
1
USB 2.0 ports quantity
2
USB 3.0 (3.1 Gen 1) Type-A ports quantity
8
DVI port
Y
Ethernet LAN (RJ-45) ports
1
Line-in
Y
Line-out
Y
Microphone in
Y
Headphone outputs
1
DisplayPorts quantity
3

Processor

Processor family
6th gen Intel® Core™ i7
Processor cores
4
Processor model
i7-6700
Processor boost frequency
4 GHz
Processor socket
LGA 1151 (Socket H4)
Processor cache
8 MB
System bus rate
8 GT/s
Processor threads
8
Processor cache type
Smart Cache
Processor lithography
14 nm
Processor operating modes
64-bit
Bus type
DMI3
Processor codename
Skylake
PCI Express slots version
3.0
Thermal Design Power (TDP)
65 W
FSB Parity
N
Maximum number of PCI Express lanes
16
PCI Express configurations
2x8,1x8+2x4,1x16
Tcase
71 °C
Maximum internal memory supported by processor
64 GB
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor
1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)
34.1 GB/s
Memory channels supported by processor
Dual
ECC supported by processor
N
Memory voltage supported by processor
1.35 V
Processor frequency
3.4 GHz
Stepping
R0
Processor series
Intel Core i7-6700 Desktop series
Conflict Free processor
Y
Number of processors installed
1

Processor special features

Intel® vPro™ Technology
Y
Intel® Small Business Advantage (Intel® SBA)
Y
Intel® Wireless Display (Intel® WiDi)
Y
Intel® Built-in Visuals Technology
Y
Intel HD Graphics
Y
Intel 64
Y
Intel® Turbo Boost Technology
2.0
Intel® Hyper Threading Technology (Intel® HT Technology)
Y
Intel® Quick Sync Video Technology
Y
Intel® My WiFi Technology (Intel® MWT)
N
Intel® Identity Protection Technology (Intel® IPT)
Y
Intel® Anti-Theft Technology (Intel® AT)
N
Enhanced Intel SpeedStep Technology
Y
Intel® InTru™ 3D Technology
Y
Intel® Insider™
Y
Intel® Clear Video HD Technology (Intel® CVT HD)
Y
Intel Clear Video Technology
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Intel TSX-NI
Y
Idle States
Y
Thermal Monitoring Technologies
Y
Intel Stable Image Platform Program (SIPP)
Y
Intel® AES New Instructions (Intel® AES-NI)
Y
Intel® Secure Key
Y
Intel® OS Guard
Y
Intel Trusted Execution Technology
Y
Execute Disable Bit
Y
Intel FDI Technology
N
Intel Flex Memory Access
N
Intel Fast Memory Access
N
Embedded options available
N
Intel® Smart Cache
Y
Intel Demand Based Switching
N
Intel Software Guard Extensions (Intel SGX)
Y
Supported instruction sets
SSE4.1,AVX 2.0,SSE4.2
Scalability
1S
CPU configuration (max)
1
Graphics & IMC lithography
14 nm
Thermal solution specification
PCG 2015C
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Enhanced Halt State
Y
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Y
Processor package size
37.5
Processor code
SR2BT
Intel Stable Image Platform Program (SIPP) version
1.00
Intel Secure Key Technology version
1.00
Intel Virtualization Technology (VT-x)
Y
Intel Small Business Advantage (SBA) version
1.00
Intel TSX-NI version
1.00
Intel Dual Display Capable Technology
N
Intel Rapid Storage Technology
N
Processor ARK ID
88196

Software

Operating system installed
Windows 7 Professional
Operating system architecture
64-bit
Recovery operating system
Windows 10 Pro

Storage

Total storage capacity
1000 GB
Storage media
HDD
Number of hard drives installed
1
Hard drive capacity
1000 GB
Hard drive interface
Serial ATA
Hard drive speed
7200 RPM

Weight & dimensions

Width
3.94" (100 mm)
Depth
13.3" (338 mm)
Height
15" (381 mm)
Weight
12.6 lbs (5.7 kg)
